Sanden SHS33 High Voltage AC compressor kit for electrified vehicles RD-2-8358-0P

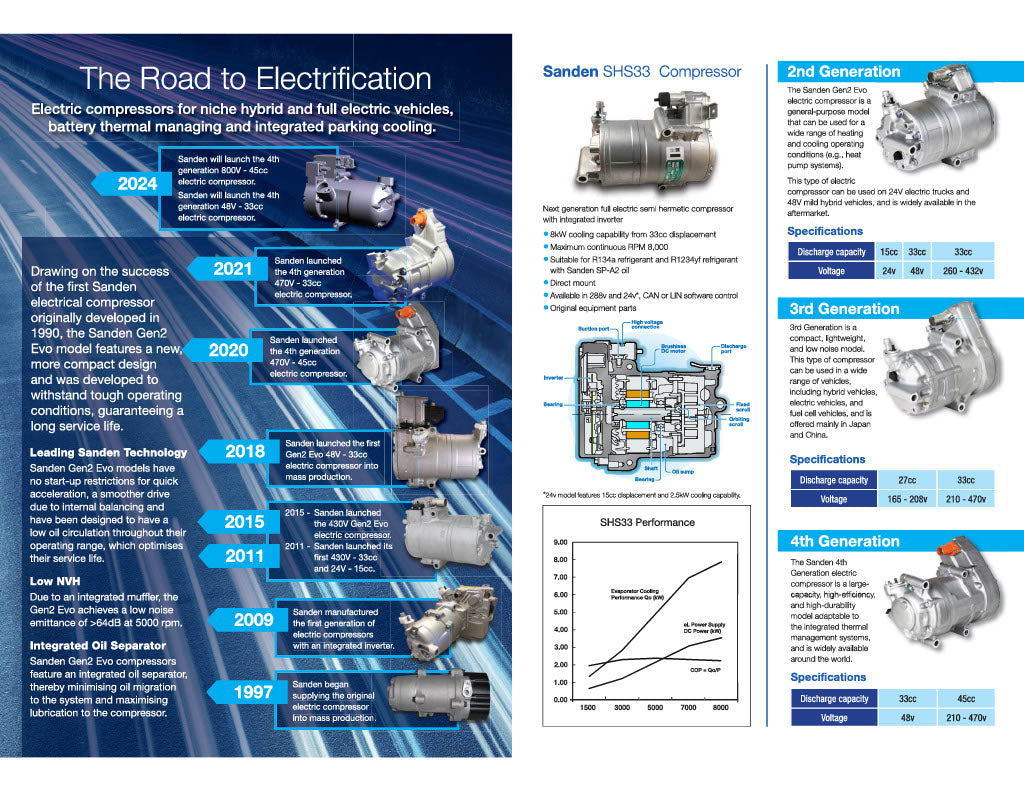

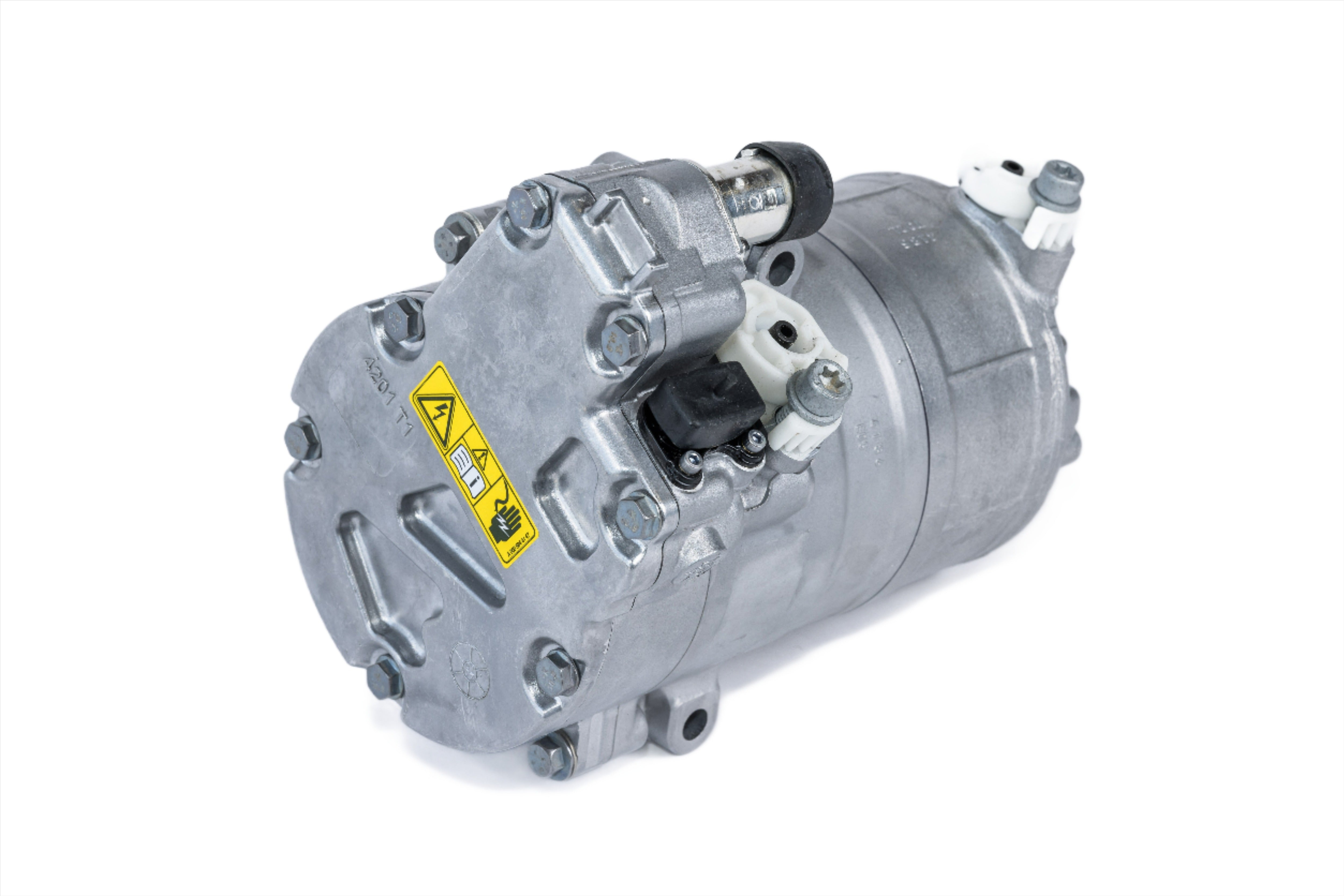

This Red Dot High Voltage (HV) Electric A/C compressor kit is available to power electrified vehicle A/C systems.

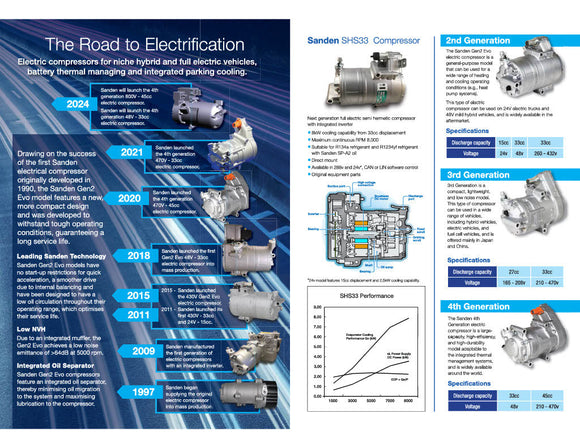

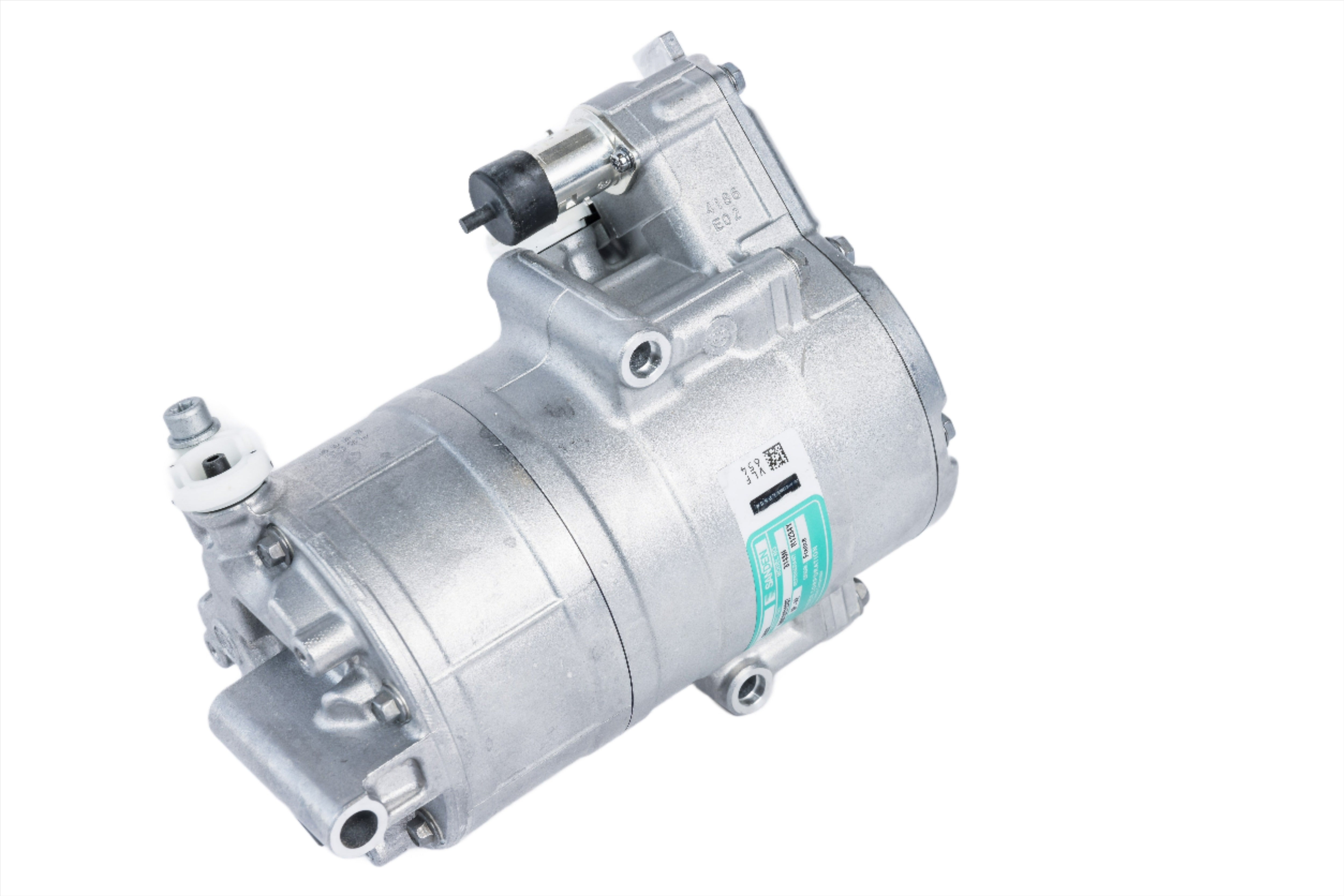

This Sanden SHS33 High Voltage Compressor kit is the perfect centerpiece for your new project. This compressor is suitable to work with all Red Dot Evaporator and Condenser units in your existing R-134a or new R-1234yf based designs.

The Sanden SHS33 HV electric compressor requires high voltage power supply to operate the compressor and a separate connection to a CAN control circuit with high and low pressure transducers to control the compressor.

• Part Number: RD-2-8358-0P
• Manufacturer: Sanden

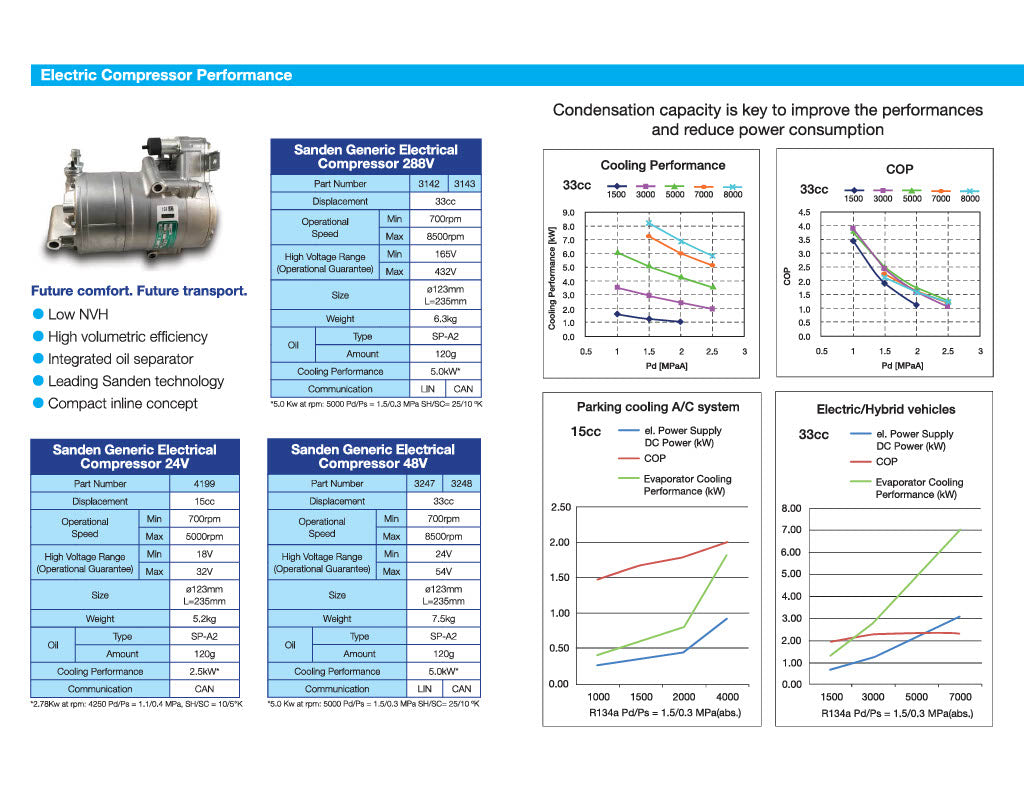

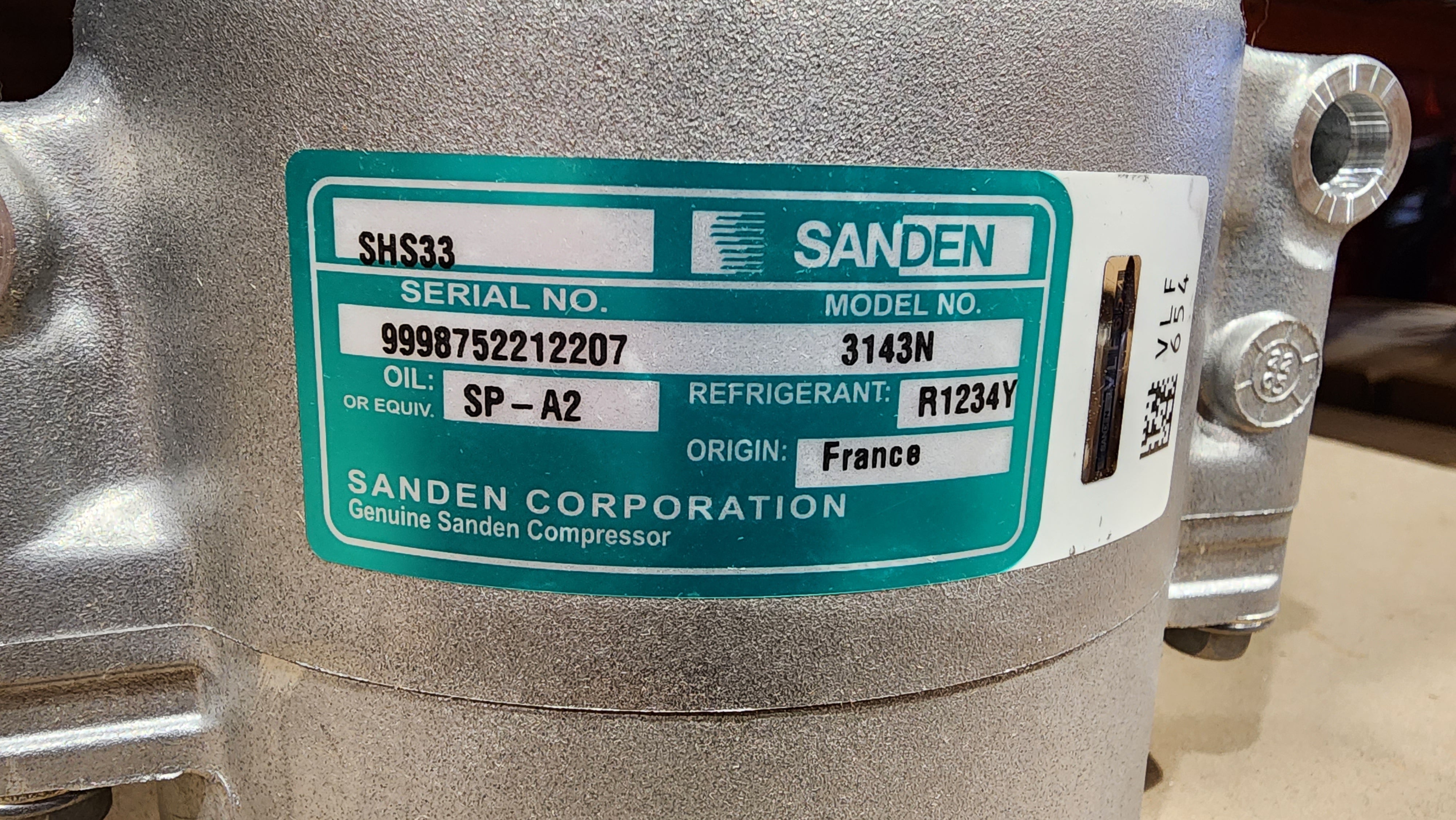

• Model: 3143N
• Operating Voltage: 165vdc - 432vdc
• Inverter: Integrated
• Mount Type: Direct
• Suction Fitting: Pad
• Discharge Fitting: Pad
• Refrigerant: R-134A or R-1234yf
• Compressor Oil: SP-A2

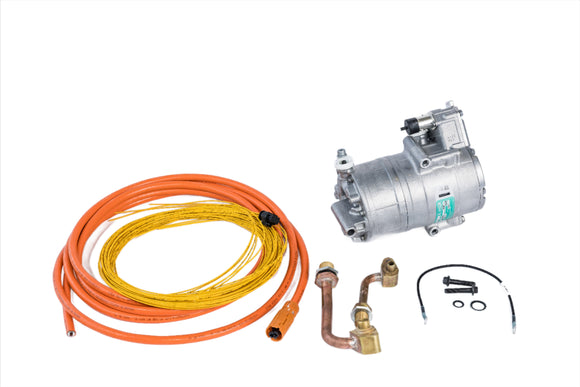

• High Voltage Cable: 2 conductor, 6ga, 600vac / 1000vdc rated. Integral connector for connection to compressor. 16' length.

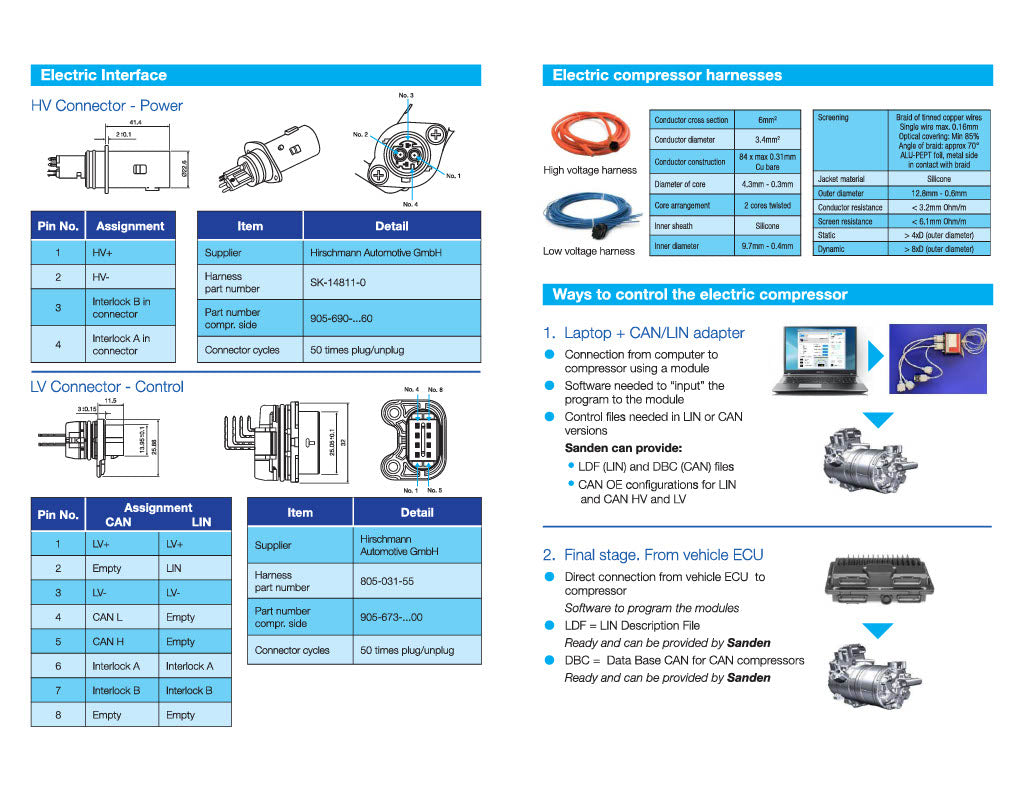

• Control Circuit Harness: 8 conductor with integral connector for connection to the compressor. 16' length.

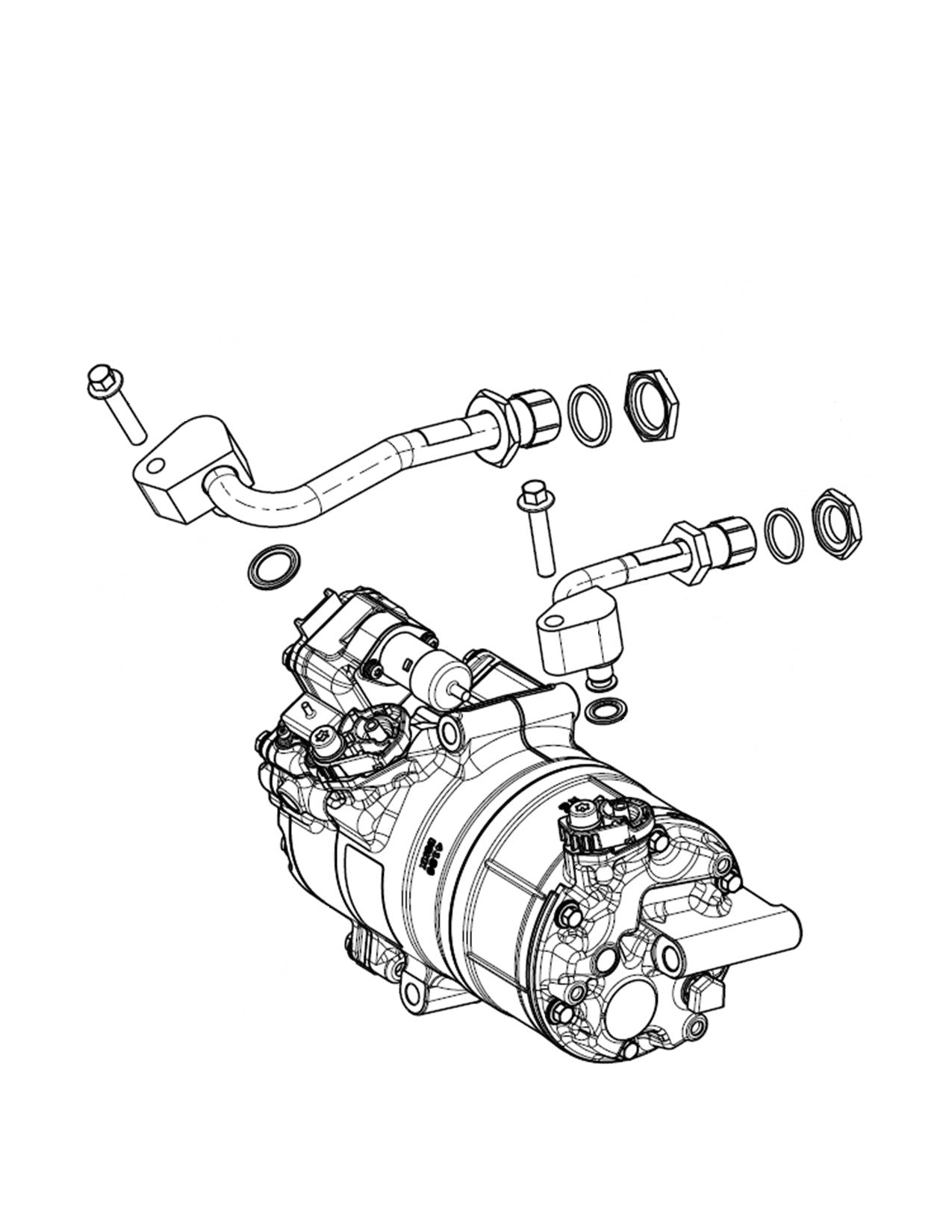

• Adapter tubes are included to convert the compressor pads to #8 Discharge & #10 Suction tube O-ring fittings.
• Recommend usage with low pressure transducer 71R6263
• Recommend usage with high pressure transducer 71R6260

!DANGER! USE OF IMPROPER COMPRESSOR OIL WILL CREATE AN ELECTRICUTION HAZARD THAT CAN RESULT IN SERIOUS INJURY OR DEATH!

Improper or inadequate electrical connections can cause severe equipment damage or personal injury. Always consult a professional to determine if your electrical system is adequate to support the requirements of this component.

When servicing electric compressors such as this one, it is imperative to use oil that is specially formulated for electric compressors.
